| Test Plug: | UL 498:2012 Figure 109.1 | Test Blade: | UL 498:2012 Figure 109.2 |
|---|---|---|---|
| Receptacle Test Fixture: | UL 498:2012 Figure 122.1 | Push Out Tool: | UL 498:2012 Figure 122.3 |
| Bridge: | UL 498:2012 Figure 122.5 | Test Pin A: | UL 498:2012 Figure 123.1 |
| High Light: | 60 HRC Test Gauges,UL498 Test Gauges,60 HRC VDE Gauge |
||

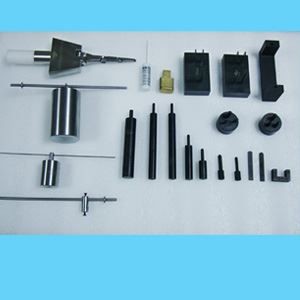

UL498 60 HRC Test Gauges Meet IEC EN UL GB DIN VDE Standards
VDE DIN49441 / UL 498:2012 Gauge
Application:
Kingpo offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.
Conforms To:
UL498
Specification:
|
NO. |
Product Name |
Standard Figure |
Model |
QTY |
|
|
Old Version |
New Version |
||||
|
1 |
Articulate probe with web stop |
Figure 9.1 |
Figure 9.1 |
U8-F91 |
1 |
|
2 |
Probe |
Figure 10.1 |
Figure 10.1 |
U8-F101 |
1 |
|
3 |
Flat probe |
Figure 31.1 |
Figure 31.1 |
U8-F311 |
1 |
|
4 |
Reference plug |
Figure 69.1 |
Figure 73.1 |
U8-F691 |
1 |
|
5 |
Typical test apparatus |
Figure 69.2 |
Figure 73.2 |
U8-F692 |
1 |
|
6 |
Improper insertion test blades |
Figure 94.1 |
Figure 98.1 |
U8-F941 |
2 |
|
7 |
Test plug |
Figure 105.1 |
Figure 109.1 |
U8-F1051 |
2 |
|
8 |
Test blade |
Figure 105.2 |
Figure 109.2 |
U8-F1052 |
1 |
|
9 |
Receptacle test fixture |
Figure 118.1 |
Figure 122.1 |
U8-F1181 |
1 |
|
10 |
Push out tool |
Figure 118.3 |
Figure 122.3 |
U8-F1183 |
1 |
|
11 |
Bridge |
Figure 118.5 |
Figure 122.5 |
U8-F1185 |
1 |
|
12 |
Test pin A |
Figure 119.1 |
Figure 123.1 |
U8-F1191 |
1 |
|
13 |
Test pin B |
Figure 119.2 |
Figure 123.2 |
U8-F1192 |
1 |
|
14 |
57g ground pin |
Figure 119.3 |
Figure 123.3 |
U8- F1193 |
1 |
|
15 |
113g ground pin |
Figure 119.4 |
Figure 123.4 |
U8- F1194 |
1 |
|
16 |
No.14AWG test pin |
Figure 129.2 |
Figure 133.2 |
U8-F1292 |
1 |
|
17 |
Small test probe |
Figure 132.1 |
Figure 136.1 |
U8-F1321 |
1 |
|
18 |
Fixture for assembly security test |
Figure 144.2 |
Figure 165.2 |
U8-F1442 |
1 |
|
19 |
Standard grounding pin |
Figure SD 5.1 |
Figure SD 5.1 |
U8-SD51 |
1 |
|
20 |
Standard grounding pin |
Figure SD 13.1 |
Figure SD 13.1 |
U8-SD131 |
1 |
|
21 |
Oversize grounding pin |
Figure SD 13.2 |
Figure SD 13.2 |
U8-SD132 |
1 |
