| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Model Number: | KP-UL498 |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 20-50 pieces per month |
| Articulate Probe With Web Stop: | UL498:2012 Figure 9.1 | Probe: | UL498:2012 Figure 10.1 |
|---|---|---|---|
| Flat Probe: | UL498:2012 Figure 31.1 | Reference Plug: | UL498:2012Figure 74.1 |
| Typical Test Apparatus: | UL498:2012 Figure 74.2 | Improper Insertion Test Blades: | UL498:2012 Figure 100.1 |
| High Light: | UL498 Test Gauge,Figure 9.1 Test Gauge,UL498 Plug Gauge |
||

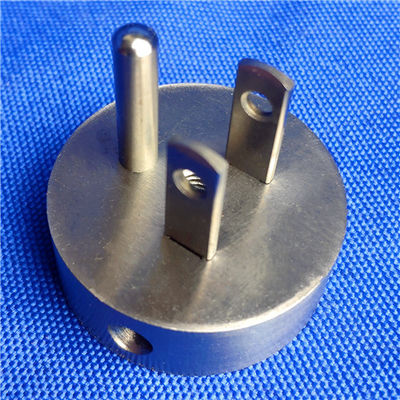

UL498 Test Gauge To Measuring American Standard Plug And Socket
UL498 Plug And Socket Gauge
Product information:
The gauges conforms to the standard of UL498.It is measuring American standard plug and socket.
|
NO. |
Product name |
UL498 standard Figure |
UL498:2021 standard Figure |
|
Old version |
New version |
||
|
1 |
Articulate probe with web stop |
Figure 9.1 |
Figure 9.1 |
|
2 |
Probe |
Figure 10.1 |
Figure 10.1 |
|
3 |
Flat probe |
Figure 31.1 |
Figure 31.1 |
|
4 |
Reference Plug |
Figure 69.1 |
Figure 74.1 |
|
5 |
Typical test apparatus |
Figure 69.2 |
Figure 74.2 |
|
6 |
Improper insertion test blades |
Figure 94.1 |
Figure100.1 |
|
7 |
Test Plug |
Figure105.1 |
Figure111.1 |
|
8 |
Test blade |
Figure118.1 |
Figure111.2 |
|
9 |
Receptacle test fixture |
Figure118.1 |
Figure124.1 |
|
10 |
Push out tool |
Figure118.3 |
Figure124.3 |
|
11 |
Bridge |
Figure118.5 |
Figure124.5 |
|
12 |
Test pin A |
Figure119.1 |
Figure125.1 |
|
13 |
Test pin B |
Figure119.2 |
Figure125.2 |
|
14 |
57g ground pin |
Figure119.3 |
Figure125.3 |
|
15 |
113g ground pin |
Figure119.4 |
Figure125.4 |
|
16 |
No.14AWG test pin |
Figure129.2 |
Figure136.2 |
|
17 |
Small test probe |
Figure132.1 |
Figure 139.1 |
|
18 |
large test probe
|
Figure 132.2 |
Figure 139.2 |
|
19 |
Standard grounding pin |
Figure SD 5.1 |
Figure SD 5.1 |
|
20 |
Standard grounding pin |
Figure SD 13.1 |
Figure SD13.1 |
|
21 |
Oversize grounding pin |
Figure SD13.2 |
Figure SD 13.2 |
