| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 20~25 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Standard: | IEC 60598-1 Clause 8.15.1 | Jaws Materail: | Steel |
|---|---|---|---|
| Jaws Width: | 15mm | Jaws Radius: | 2.5 Mm |
| Force Applied: | 100N | Test Sample: | Handlamps Having A Handle Or Shell Of Flexible Material |
| High Light: | 100N LED Light Testing Equipment,15mm jaws LED Light Testing Equipment,IEC 60598 1 Light Impact Tester |
||

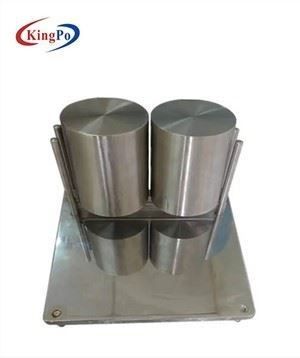

100N Impact LED Light Testing Equipment IEC 60598 1 Clause 8.15.1
IEC 60598-1 clause 8.15.1 Arrangement For Impact Test
Product information:
This test device is designed and manufactured according to the standard requirements of IEC 60598-1 clause 8.15.1 for handlamps having a handle or shell of flexible material, such as rubber or polychloroprene, compliance shall be checked by the following test.
The parts of the handlamp which are gripped in normal use, are subjected to a pressure test in an apparatus similar to that shown in figure 3, the test being made in a heating cabinet maintained at a temperature of 100±2℃.
The sample is clamped between steel jaws, having a cylindrical face of 25mm radius, a width of 15 mm and a length of 50 mm. The corners are rounded with a radius of 2.5mm.
The sample is clamped in such a way that the jaws press against it in the area where it is gripped in normal use, the centre line of the jaws coinciding as nearly as possible with the centre of this area.
The force applied through the jaws is 100N.
After 1 h, the jaws are removed and the sample shall show no damage.
Technical parameters:
|
Steel jaws width |
15mm |
|
Steel jaws radius |
2.5 mm |
|
The force applied through the jaws |
100 N |
|
Standard |
IEC 60598-1 clause 8.15 |
