Tumbling Barrel LED Light Testing Equipment For Falling Resistance

Basic Information
Place of Origin: China
Brand Name: KingPo
Certification: ISO 17025 Calibration certificate
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety box
Delivery Time: 20~25 working days
Payment Terms: 100% TT in advance
Supply Ability: 3~5 units per month
Detail Information
Standard: VDE0620 Test Sample: Plugs And Socket-outlets
Application: Falling Resistance Rotate Speed: 5rpm
Falling Rate: 10 Times Per Min Material: 3mm Steel
High Light:

Tumbling Barrel LED Light Testing Equipment

,

VDE0620 LED Light Testing Equipment

,

VDE0620 Tumbling Barrel Test Machine


Product Description

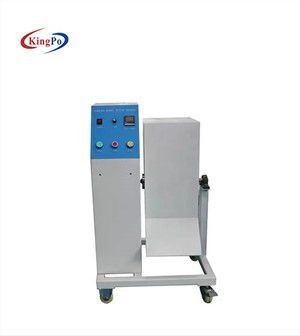

Tumbling Barrel LED Light Testing Equipment For Falling Resistance



VDE0620 Tumbling Barrel Test Machine For Testing Falling Resistance Of Plugs And Socket-Outlets



Product Introduction

This tester conforms to the standard requirement of VDE0620 ,IEC60068-2-32,BS1363.1,EN50075,UL60730. it is used to check the drop resistance of electrical accessories. to assess the effects on a specimen of simple standard tests intended to be representative of the fall likely to be experienced during rough handling, or to demonstrate a minimum degree of robustness, for the purpose of assessing safety requirements.



Standard: IEC 60884-1 2013 clause 24.2, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-31, BS1363.1, EN50075, UL60730, IEC 60312-1 and so on



Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.



Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.



Feature: This tester can preset test times, automatic stop when set test times completed.



Parameters:

Model

KP9922A

Rotate speed

5rpm

Drop rate

10time per min

Material

3mm steel

Test times

0~9999

Drop height

500mm

Barrel number

Single barrel

Application

Plug type lamp ballast / transformer and power socket install luminaries, plug device

Standards

IEC60598-1 figure25, VDE0620-1 figure27

Power supply

220V 50Hz



Operation Steps

1. Set the number of drop, it will immediate effect after reset. User needs to press the reset button when change setting value of the drop times each time, otherwise, the counter will according to the original setting value to work.

2. Need to close the door after the specimen is put inside.

3.Press the "Start" button and start the test.

4.The test machine will stop working when achieve to the setting value, press the “Reset” button to eliminate the sound alarm.

5. Take out the sample, and judge the test results.

Note: The power supply of this machine is single phase 220V±10%, 50HZ, the voltage should be guaranteed within the specified range, otherwise it will affect the rotating speed of the barrel (and will damage the motor).



Notice

When the box body is stopped in the inclined position, re-start the testing machine, make it stop when the box goes to the proper position, so that not to damage the machine transmission parts.
