| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Type: | Air Cooling | Temp. Overshoot: | ≤±2℃ |
|---|---|---|---|
| Effective Volume: | 150L | Temperature Range: | 40℃~+150℃ |
| Inner: | W500 Mm*H600 Mm*D500 Mm | Outer: | W700mm*H1750mm*D1570mm |
| High Light: | IEC60068 Temperature Cycling Test Chamber,150L Temp Cycle Chamber,150L Thermal Cycle Test Chamber |
||

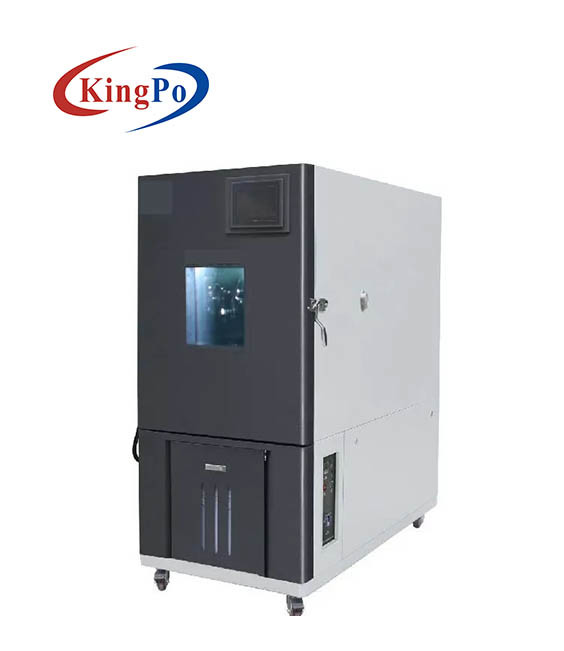

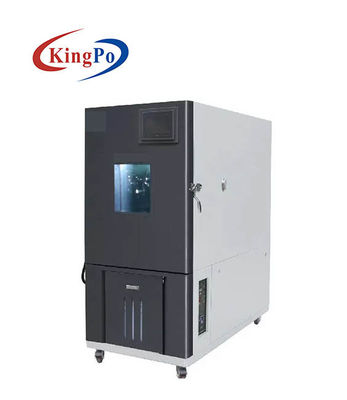

Air Cooling Temperature Cycling Test Chamber Effective Volume 150L
IEC60068-2-1:2007 Temperature Cycling Test Chamber
Standard
The Temperature Cycling Test Chamber conform to the IEC60068-2-1:2007, IEC60068-2-2:2007, IEC60068-2-78:2007, IEC60068-2-30:2005, GJB150.3-1986, CJB150..4-1986, IEC62133-2012.
Application
This equipment mainly used for electric and electronic products,components and other materials high low temperature test,temperature change,damp heat etc. Environment simulate reliability test.
Other usage except this may cause personal injuries and machinery damages.
Limitation
a) Inflammable, explosive,easy volatile specimen test and storage.
b) Corrosive material and biologial specimen test and storage
c) Strong electromagnetic source specimen test and storage.
Parameter
|
Condition |
Air cooling type under environment temp.+5℃～+35℃,relative humidity≤85%, No load(without specimen in the testing zone) |
|
Temperature Range |
40℃~+150℃ |
|
Temperature Fluctuation |
±0.5℃ |
|
Temperature Deviation |
≤±2.0℃ |
|
Temp. Uniformity |
≤2.0℃ |
|
Temp. Heating Time |
From -40℃ to 80℃,full range non-linear average about5℃/mins,no load |
|
Temp. Cooling Time |
From 80℃to -40℃ ,full range non-linear average about5℃/mins,no load |
|
Temp. Overshoot |
≤±2℃ |
|
Max. Loading |
No |
|
Humidity Range |
20％RH～98％RH |
|
Humidity Fluctuation |
≤±2.5%RH |
|
Humidity Deviation |
>75%RH:≤+2,-3%RH, <75%RH:≤±5%RH |
|
Constant Max.Heating Load |
No |
|
Noise |
≤70dB(A Level) |
|
Effective Volume |
150L |
|
Inner Dimension |
W500 mm*H600 mm*D500 mm |
|
Overall Dimension |
W700mm*H1750mm*D1570mm |
