AC220V 50Hz Medical Testing Equipment For Disposable Surgical Mask

Basic Information
Place of Origin: Mainland China
Brand Name: KINGPO
Certification: calibration certificates
Model Number: ZR-1200
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detail Information
Flow: (6-10)L/min Pressure Difference: (2-100)Pa/cm2
Pressure Measurement: (10-500)Pa Mask Test Diameter: ø25mm
Working Power: AC220V±10%,50Hz Output: DC18V 2.5A
High Light:

AC220V Medical Testing Equipment

,

2.5A Medical Testing Equipment

,

50Hz Mask Resistance Tester


Product Description

AC220V 50Hz Medical Testing Equipment For Disposable Surgical Mask

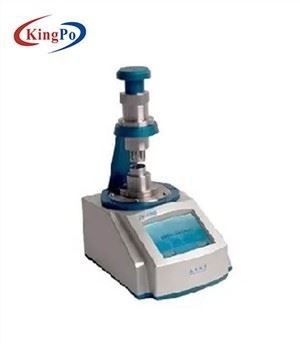

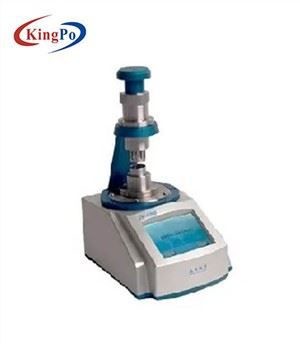

ZR-1200model mask resistance tester



Product introduction

Zr-1200 mask resistance tester conforms to yy0469-2011 technical requirements for surgical masks.When different airflow flows through a certain area of the mask, the pressure at both ends of the mask can be detected to detect the resistance of the mask material.

Executive standard

YY/0469-2011 Technical requirements for surgical masks for medical use

YY/T 0969-2013 Disposable surgical mask

Related intellectual property

patent number:ZL201320126839.0 The utility model relates to a respirator resistance testing device

patent number:ZL201330046644.0 Resistance tester for surgical mask

Technical characteristics

Pressing mask presses the self-locking device, which is convenient and reliable to use.

Electronic flowmeter, high flow control precision;

Automatic constant current control, automatic sample qualification;

Low noise, long life brushless flow pump;

5 inches Chinese color touch screen display.

Technical indicators

main parameters

parameters

resolution

Maximum permissible error

flow

(6-10)L/min

0.1L/min

±2.5%

pressure difference

(2-100)Pa/cm2

1Pa/cm2

±1%

Pressure measurement

(10-500)Pa

0.1Pa

±1%

Mask test diameter

ø25mm

Working power

AC220V±10%,50Hz Output:DC18V 2.5A

Overall dimensions

(length270mm×wide200mm×high320)mm

Host weight

About5Kg

machine power consumption

<30W
