Glow Wire: | K Type | Deal Board: | 20cm*20cm |
---|---|---|---|
Copper Block φ: | Φ5.5/Φ9 | Copper Block Mass: | 1.76g/10g |
Flame Height Gauge: | 1-1.5mm Thick | Material: | Stainless Steel |

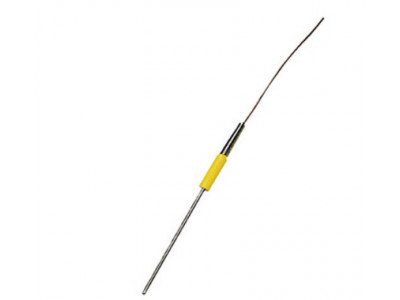

K Type Glow Wire Thermocouple Flammability Testing Equipment
1.Product information:
Imported with original packaging insulation high temperature resistance armour thermocouple,0.5mm type K, armour heat-resisting1100℃(is superior to the standard 1050℃)
2.Deal board:
Use deal board of 20cm*20cm for glow wire testing.
3.Copper block:
Horizontal-vertical tester, needle flame tester dedicated thermometry copperΦ5.5,1.76g(50W)/Φ9,10g(500W)/4*6,0.58g(needle flame),high cathode copper, purity over 99.5%.
4.Platinum pole:
Used platinum electrode for electric leakage, front part purity is 99% platinum; 2mm± 0.1mm×5mm±0.1mm× 12mm ± 5mm,30°±2° bevel, copper handle welded.
5.Flame height gauge:
Material: thickness of 1-1.5mm stainless steel, IEC606095-11-4 picture 2, IEC606095-11-3 picture 2.
Deal board |
Copper block |
Platinum pole |
Flame height gauge |
Use deal board of 20cm*20cm for glow wire testing | Horizontal-vertical tester, needle flame tester dedicated thermometry copperΦ5.5,1.76g(50W)/Φ9,10g(500W)/4*6,0.58g(needle flame),high cathode copper, purity over 99.5% | Used platinum electrode for electric leakage, front part purity is 99% platinum; 2mm± 0.1mm×5mm±0.1mm× 12mm ± 5mm,30°±2° bevel, copper handle welded |
Material: thickness of 1-1.5mm stainless steel, IEC606095-11-4 picture 2, IEC606095-11-3 picture 2.
|
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
