| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Max Short Circuit Current: | 1000A | Resistance: | 80±20 MΩ |
|---|---|---|---|
| Control Distance: | No Solid Barrier 7m | Mechanical Life: | 300,000 Times |
| Electrical Life: | Resistive Load 50,000 Times | Temperature Range: | Room Temperature +10℃~ 80℃ |
| High Light: | 1000A Lithium Battery Testing Equipment,UL2054 Lithium Battery Testing Equipment,1000A Battery Short Circuit Tester |
||
Max 1000A Lithium Battery Testing Equipment Short Circuit Tester

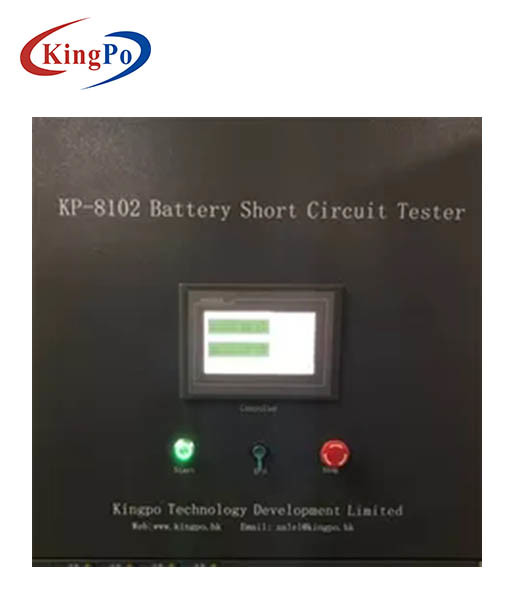

KP 8102 Battery Short Circuit Tester
Standard
It is conforms to IEC62133 clause 7.3.2 ,8.3.1,8.3.2 IEC60086-4 clause 6.5.1 IEC60086-4 clause 6.5.8 6.5.9 ,IEC 60086-1 ,IEC61951,IEC61960, UN38.3 ,UL1642, UL2054, QC 743/744, MT/T 1051-2007,GB/T 2900.11-1988,GB31241-2014and etc.
Feature:
|
High current contactor |
(1) remotely connect and disconnect DC operational voltage to 220V； (2) rated operational current 1000A;equipped with series clay magnetic blowout cover and system (3) electromagnetic system and main contact arc-extinguishing system are fixed on bottom; main contact is made of red copper;low contact resistance,rapid reaction speed； (4) Reliable and safe;long service life and convenient maintenance； |
|
Remote controller |
(1) long distance wireless control； (2) reliable and stable;auto lock and interlock; anti-interference and long service life； |
|
Voltmeter |
(1) measurement voltage:0-100V； (2) display accuracy:F.S ±0.2% rdg ±1digit； (3) motion:double integral |
|
Ammeter |
(1) measurement current:0-1000A DC one level； (2) display accuracy:F.S±0.2% rdg±1digit； (3) motion:double integral |
|
Basic Configuration |
Consist of high current contactor,remote controller,voltmeter,ammeter,etc (2) accessories,special tool,spare parts,etc |
|
Touch screen interface(English) |
|
|
USB Interface |
export data via USB |
|
Technical Parameter: |
|
|
1 max short circuit current |
1000A |
|
2 resistance |
80±20 mΩ |
|
3 Control Distance |
no solid barrier7m |
|
4 mechanical life |
300,000 times |
|
5 Electrical life |
Resistive load 50,000 times |
|
6Temperature Range |
room temperature +10℃~ 80℃(meet test condition of 55℃±5℃ and 25℃±5℃) |
|
7 Temperature fluctuation |
±1℃ |
|
8 Temperature deviation |
±2℃ |
|
9 Internal dimension |
W600 X D500 X H600mm |
|
10 Internal material |
304# stainless steel(thickness 1.0mm) |
|
11 External dimension |
W940XD780XH1620 mm |
|
12 External material |
cold rolled plate baking varnish(thickness 1.0mm,total thickness of internal chamber 100mm) |
|
13 Observation window |
390 X 360mm(20mm thick toughened explosion-proof glass) |
|
14 Light design |
highlighted energy-saving lamp |
|
15 test hole |
3 holes(diameter :φ50mm) ;3 stainless steel covers;3 silicone plugs |
|
16 pulley |
easy to move with strengthening screw bolt |
|
17 heating system |
Fin Type Heat Dissipation tube nickel-chrome U-type high efficiency heater |
|
18 circulation system |
stainless steel lengthened axis ;moisture proof and Heat Dissipation sirocco fan; |
|
19 air-deflector |
Can adjust up and down,left and right;to ensure uniform distribution of temperature |
|
20 Exhaust System |
On the back of equipment;can make waste gas exhaust through it |
|
21 Power supply; |
AC220V 50HZ |
|
22 Power |
3.0KW |
Operation room
Resistance calibration
The temperature calibration
Installation
1. Operation condition requirement: temperature-10℃~100℃ humidity 10~90% with no condensation
2. Other:locate the machine on a plane table with certain intensity.
3. Test requirement:
(1) install a battery in explosion proof box(standard)
(2) Independent cement room,has observation window for monitoring and controlling (customer self-prepare)
4. Power:AC 1φ 3W 220V
5. Installation site(suggestion):
