| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Sample: | Lithium, Nickel, Ni-MH, Lead-acid Battery | Usage: | Nail Penetrating |
|---|---|---|---|
| Weight: | 180kg | Inner Space: | 300mm*300mm*300mm |
| Standard: | UL2054:1997 | Nail: | ф2mm—ф8mm |
| High Light: | Ф8mm Nail Penetration Test Machine,ISO 17025 Lead Acid Battery Tester,Ф2mm Nail Penetration Test Machine |
||

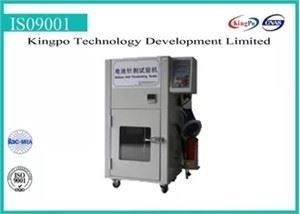

Ф2mm Ф8mm Nail Penetration Test Machine For Lithium Lead Acid Battery
Battery Nail Penetrating Testing Machine
|
Function |
Test safety capability of battery. Nail penetrates the specimen battery and check whether it will fire or explode |
|
Type |
Three tanks |
|
Weight |
180kg |
|
Internal space |
300mm*300mm*300mm |
|
Corresponding test standard |
SJ/T11170-1998 UL2054:1997, GB/T18287-2000 |
Description
Using steel nail penetrating the battery, the tester is used to check safety capability of battery, and the battery is qualified without fire, and explosion.
The nail penetrating test is processed under temperature of 20℃±5℃.
The specimen battery has thermocouple whose contact spot is located on the largest surface.
Place the battery on the fuming cupboard, using stainless nail with diameter of 2-8mm to penetrate the centre position of largest side of battery at speed of 10mm/s-40mm/s and keep for 5s.
Test result: the battery is qualified without fire and explosion.
Applicable objects
Lithium battery, nickel battery, Ni-MH battery, lead-acid battery
Specifications
|
Model |
GX-5068 |
|
Steel nail |
ф2mm—ф8mm high temperature resistant |
|
Space between battery surface and nail point |
150mm |
|
Penetrating speed |
10—40mm/s |
|
Penetrating force |
150~200KG |
|
Force display |
Pressure sensing and LED display |
|
Test stroke |
150mm |
|
Drive mode |
Cylinder drive |
|
Structure of tester |
Box-type to be explosion proof, fire proof, anti-corrosion and easy to clean |
|
Dimension of explosion proof tank |
450×750×550mm(W×H×D) |
|
Dimension of controller box |
300×260×170mm |
|
Power |
1ф220V , 50HZ |
