Standard: | IEC 60529:2013 Clause 14.2.8 | Pressure Adjustment: | Manual Or Auto |
---|---|---|---|
Tank Thickness: | 3~6mm | External: | 650*650*1300mm |
Tank Material: | SUS304# Stainless Steel | Test Time: | 0-999Min |
High Light: | IPX8 Water Immersion Test Equipment,SUS304 Water Immersion Test Equipment,IPX8 Waterproof Test |

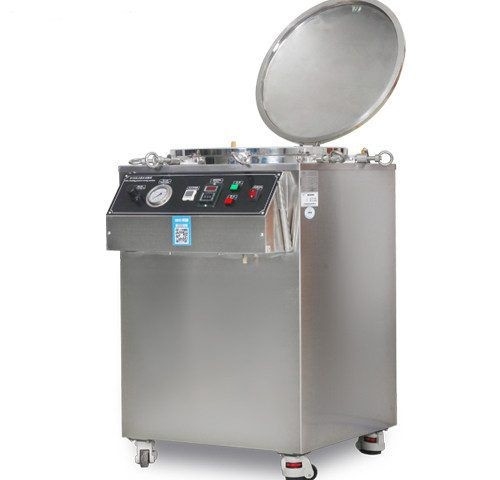

IPX8 Water Immersion Test Equipment SUS304 Stainless Steel Tank
IEC 60529:2013 clause 14.2.8 IPX8 Immersion Test Device
Product Details
IPX8 IMMERSION PRESSURE TEST DEVICE is intended for testing protection against ingress of water, IPX8 Immersion beyond 1 m, and the equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer.
Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. Test duration: continuous immersion in water;
Depth specified by manufacturer
IPX8 Continuous Immersion Features :
This test equipment is designed and manufactured as per Iec 60529 2013 clause 14.2.8.
Test for second characteristic numeral 8: continuous immersion subject to agreement.
Unless there is a relevant product standard, the test conditions are subject to agreement between manufacturer and user, but they shall be more severe than those prescribed in 14.2.7 and they shall take account of the condition that the enclosure will be continuously immersed in actual use.
The test equipment is suitable for IP code degree testing of electrical & electronic products, auto parts, Luminaires and etc.
Conforms To IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1
IPX8 Continuous Immersion Test Device Specifications:
NO. |
Items |
Parameters |
|||||
1 |
Model |
KP-IPX8S-30M |
KP-IPX8S-30A |
50M |
-50A |
-120M |
-120A |
2 |
Pressure adjustment method |
Manual |
Automatic |
Manual |
Automatic |
Manual |
Automatic |
3 |
Pressure adjustment range(MPa) |
0.05-0.3 |
0.00-0.3 |
0.05-0.5 |
0.00-0.5 |
0.05-1.2 |
0.00-1.2 |
4 |
Test Depth (m)) |
5-30 |
0-30 |
5-50 |
0-50 |
5-120 |
0-120 |
5 |
(MPa) |
0.35 |
0.35 |
0.55 |
0.55 |
1.25 |
1.25 |
6 |
(MPa) |
0.40 |
0.40 |
0.60 |
0.60 |
1.30 |
1.30 |
7 |
Pressure gauge accuracy(MPa) |
0.002 |
0.001 |
0.002 |
0.001 |
0.002 |
0.001 |
8 |
Tank Thickness(mm) |
3 |
3 |
4 |
4 |
6 |
6 |
9 |
Flange Thickness(mm) |
20 |
20 |
25 |
25 |
30 |
30 |
10 |
Inner Diameter(mm) |
500 |
|||||
11 |
Inner height(mm) |
500 |
|||||
12 |
External Dimensions (mm) |
650*650*1300mm |
|||||
13 |
Tank Materials |
SUS304# Stainless Steel |
|||||
14 |
Test time |
0-999Min |
|||||
15 |
Protection |
Leakage, water shortage, short circuit |
|||||
16 |
Power supply |
220V 50HZ or 115V 60 HZ |
|||||
18 |
Weight (kg) |
60 |
80 |
120 |
1.The sizes can make different size according to request. 2.The size is different depending on the size of the test product. 3.The size can be customized by the customers’ need.
