0.4Mpa Splash Water Testing Apparatus For Electric Kitchen Machine

Basic Information
Place of Origin: China
Brand Name: KINGPO
Certification: calibration certificate
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety wooden box
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Detail Information
Standard: Clause 15.1.1 And 15.1.2 Test Sample: Electric Kitchen Machine
Bowl Size: φ35×φ25×10mm Control: Manual
Size: 500×300×1200mm Pressure Gauge: 0.4Mpa
High Light:

0.4Mpa Splash Water Testing Apparatus

,

500×300×1200mm Water Testing Apparatus

,

0.4Mpa Water Permeability Test Apparatus


Product Description

0.4Mpa Splash Water Testing Apparatus For Electric Kitchen Machine



IEC 60335-2-64 Splash Water Test Apparatus For Commercial Electric Kitchen Machines



Description:

This equipment is used to simulate rain dripping on the ground, the water splash on electrical products from the ground. It is used for the water proof performance test for the bottom of household electrical appliances, such as electric food processing machinery, electric stoves, washing machines, etc.

Confirm to standards:

IEC60335-2-64: 2002 safety of household and similar electrical appliances, particular requirements for commercial electric kitchen machines clause 15.1.1 and 15.1.2;

IEC60335-2-36 safety of household and similar electrical appliances, particular requirements for commercial electric cooking ranges, ovens, hobs and hob elements;

and so on.



Test sample: Commercial electric cooking ranges, ovens, hobs and hob elements



Feature:

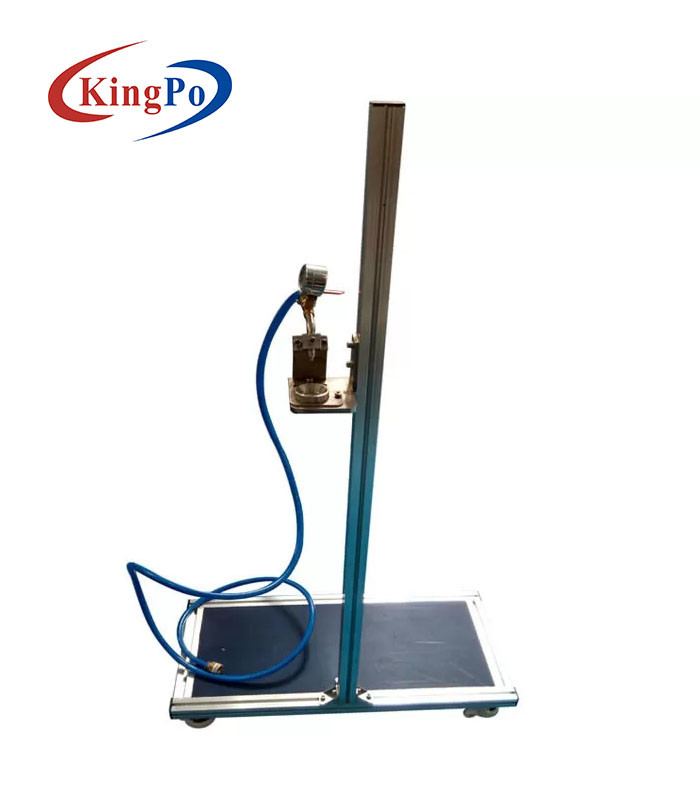

The device adopts aluminum structure, splash structure can be upward / downward adjusted; adopt the Foma wheels, it can move and also can be fixed; nozzle, bowls, and connecting tube are made of stainless steel, whole structure waterproof and anti-corrosion; equipped with a pressure gauge, real-time display the current hydraulic pressure.



Technical parameters:

Model

HH0808

Bowl

Size: φ35×φ25×10mm, made of 304 vstainless steel

Nozzle

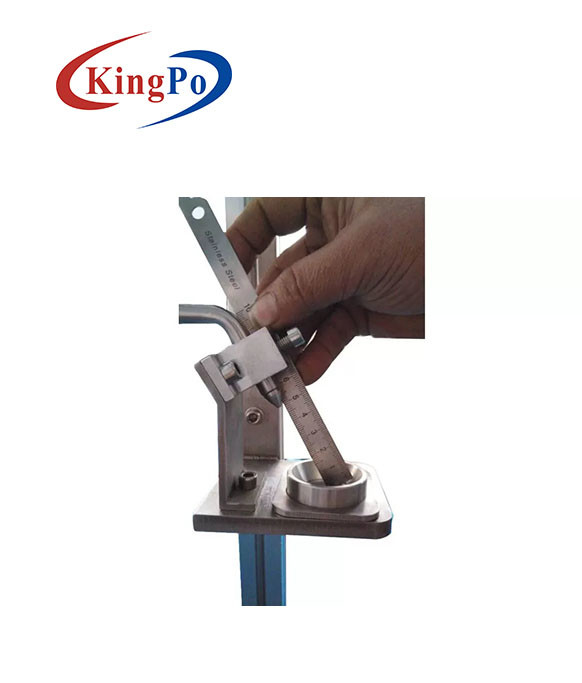

Aperture φ2mm, with an inclination angle of 60°, have a distance of 50mm from the bottom of the bowl, are made of stainless steel

Position of the splash apparatus

The bowl is lower than the minimum edge of the apparatus of 50mm

Pressure gauge

0.4Mpa

Test methods

Fix the splash apparatus, rotate the test sample (turntable is optional), test time is 5min, manual control

Splash structure lifting stroke

1m

Dimensions

L*W*H=500mm×300mm×1200mm, weight:50kg



IEC 60335-2-64 Moisture Test Figure 101 Drip Water / Splash Water Test Apparatus 0
