Operation: | Touch Screen | External: | L1000×D800×H1300 Mm |
---|---|---|---|
Water Tank Volume: | 550L | Water Tank Dimension: | 800×600×1145 Mm |
IPX5 Waterflow: | 12.5±0.625 L/min | IPX6 Waterflow: | 100±5 L/min |
High Light: | IPX5 Water Jet Test,IPX5 Waterproof Test Equipment,IPX6 Waterproof Test Equipment |
IPX5 IPX6 Integration Water Jet Test Set 550L With Supply System
IPX5-6 Integration Test Device With Supply System
Product Details

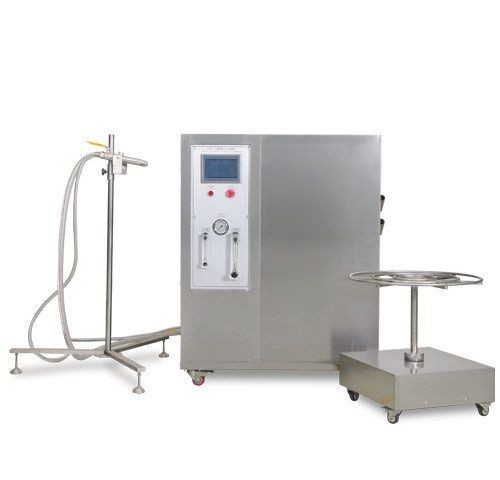

The IPX5-6 Jet Test Set with Supply System (Model:KP-IPX56A) consists of a jet handle that is equipped with a pressure gauge and IPX5 & IPX6 nozzle; a supply system that is equipped water tank, water pump and control system.
—Stainless steel nozzles —Water tank stainless steel —Touch screen operation —Leakage safety protection devices, short circuit safety protection device —Water pump overload warning to ensure safety —Valve for water flow regulation and shut off —Pressure gauge —Hose connector —Turntable electrical part of the whole seal to prevent leakage of water —Stainless steel turntable with easy height adjustment
—Turn tableis equipped with waterproof; the universal adaptor can be used in the sample charged test; —Turn tablehas four wheels with brake activity, convenient mobile and fixed.
Conforms To IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1
IPX5-6 Jet Test Set Specifications:
No. | Items | Parameters | |
1 | Model | KP-IPX56A | KP-IPX56AT |
2 | Operating mode | Touch-tone | Touch screen |
3 | External Dimensions | L1000×D800×H1300 mm | |
4 | Water tank Dimensions | 550L,800×600×1145 mm | |
5 | Nozzle Diameter (IPX5) | 6.3 mm | |
6 | Nozzle Diameter (IPX6) | 12.5 mm | |
7 | IPX5 Waterflow | 12.5±0.625 L/min | |
8 | IPX6 Waterflow | 100±5 L/min | |
9 | Flowmeter | 5-20 L/min (IPX5),10-110 L/min (IPX6) | |
10 | Pressure Gauge(Mpa) | 0 – 1MPa | |
11 | nozzle distance to test products | 2.5-3 m | |
12 | Turntable Height | 300mm-600mm (adjustable) | |
13 | Turntable Diameter | ¢600 mm | |
14 | Turntable MaxLoading Weight | 50kg | |
15 | Rotation Speed | 1 ~ 5r/min speed adjustable (to-and-fro) | |
16 | Test time | 1-9999 min can be set | |
17 | Power supply | 380VAC 50 Hz (voltage fluctuation≦+/-10%) | |
18 | Weight | 600 kg |
