Internal: | 800×800×800 | External: | 3800×1050×1600 |
---|---|---|---|
Pressure Gauge: | 0 – 1MPa | Nozzle Distance To Test Product: | 2,5m |
Power: | 380VAC 50 Hz (voltage Fluctuation≦+/-10%) | Weight: | 500kg |
High Light: | 800mm Ingress Protection Test Equipment,IPX5 Ingress Protection Test Equipment,IPX5 Waterproof Test |

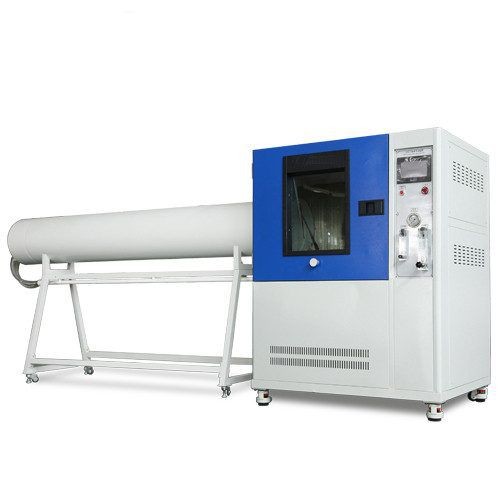

800×800×800mm Ingress Protection Test Equipment IPX5 IPX6 Jet Test
800×800×800mm PX5 IPX6 Jet Test Chamber
Product Details
The KP-IPX56B IPX5-6 Jet Test Chamber with Supply System consists of a jet handle that is equipped with a pressure gauge and IPX5 & IPX6 nozzle; a supplys ystem that is equipped water tank, water pump and control l system.
— Stainless steel nozzles
— Water tank stainless steel
— Touch screen operation
— Leakage safety protection devices, short circuit safety protection device
— Waterpump overload warning to ensure safety
— Valve for waterflow regulation and shut off
— Pressure gauge
— Turntable electrical part of the whole seal to prevent leakage of water
— Turntableis equipped with waterproof; the universal adaptor can be used in the sample charged test;
— Four wheels with brake activity, convenient mobile and fixed.
IPX5 & IPX6 Jet Test Device Specifications
No. |
Item |
Parameters |
||
1 |
Model |
KP-IPX56B-600 |
KP-IPX56B-800 |
KP-IPX56B-1200 |
2 |
Internal Dimensions (mm) |
600×600×600 |
800×800×800 |
1180×1180×1000 |
3 |
External Dimensions (mm) |
3600×1050×1600 |
3800×1050×1600 |
4000×1450×1850 |
4 |
Turntable Table Diameter(mm) |
¢400 |
¢600 |
¢800 |
5 |
Operating mode |
Touch screen |
Touch screen |
Touch screen |
6 |
Nozzle Diameter (IPX5) mm |
6.3 |
6.3 |
6.3 |
7 |
Nozzle Diameter (IPX6) mm |
12.5 |
12.5 |
12.5 |
8 |
IPX5 Waterflow(L/min) |
12.5±0.625 |
12.5±0.625 |
12.5±0.625 |
9 |
IPX6 Waterflow(L/min) |
100±5 |
100±5 |
100±5 |
10 |
Pressure Gauge(Mpa) |
0 – 1MPa |
0 – 1MPa |
0 – 1MPa |
11 |
Flowmeter |
5-20 L/min (IPX5),10-110 L/min (IPX6) |
||
12 |
Nozzle distance to test products |
2.5 m |
2.5 m |
2.5 m |
13 |
Test time |
1-9999 min can be set |
1-9999 min can be set |
1-9999 min can be set |
14 |
Power supply |
380VAC 50 Hz (voltage fluctuation≦+/-10%) |
380VAC 50 Hz (voltage fluctuation≦+/-10%) |
380VAC 50 Hz (voltage fluctuation≦+/-10%) |
15 |
Weight (kg) |
500 |
500 |
600 |
1.The sizes can make different size according to request.
2.The size is different depending on the size of the test product.
3.The size can be customized by the customers’ need.
