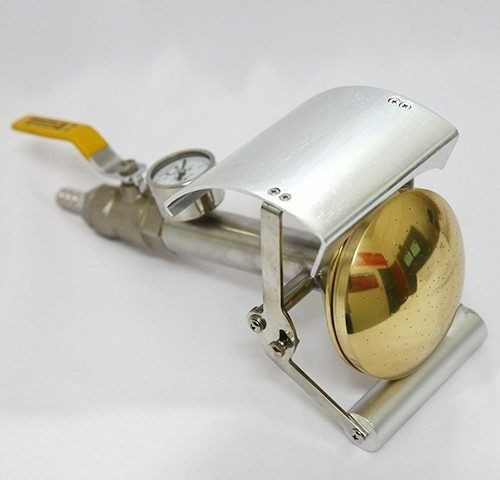

IPX3 And IPX4 Hand Held Spray Nozzle

Basic Information
Place of Origin: China
Brand Name: KINGPO
Certification: calibration certificate
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety wooden box
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detail Information
Holes Number: 121 Hole Diameter: 0.5 Mm
Spray Head Diamater: 100 Mm Pressure Gauge: 0~0.4Mpa
Dimension: 150 X 300 X 150mm Weight: 2kg

Product Description

Product Details

For checking the protection against water, to prove the degree of protection IPX3 and IPX4. Positioning of the shield allows for both “Protection against Spraying WFor checking the protection against water, to prove the degree of protection IPX3 and IPX4. Positioning of the shield allows for both “Protection against Spraying Water” and “Protection against Splashing Water” tests. ater” and “Protection against Splashing Water” tests.

The spray tester is the low cost alternative to the Oscillating Spray test for IPX3 and IPX4. Complete test device includes nozzle head, moving shield, pressure gauge, handle, flow control and shut off valve, and any connecting hose. Spherical cap of the spray nozzle is nickel-plated brass, all other metallic parts of stainless or nickel-plated steel.

—Spray nozzle head made of brass —Pressure gauge —moving shield —Ball valve for water flow control —handle —any connecting hose —Flow gauge (Optional)

No. ITEM Parameters
1 Model KP-IPX34-SN
2 Number of Holes 121
3 Diameter ofNozzle Holes 0.5 mm
4 Diameter of Spray Head 100 mm
5 Pressure Gauge 0~0.4Mpa
6 Diameter of Hoseconnector 15mm
7 Dimensions 150mm x 300mm x 150mm
8 Weight: 2kg
