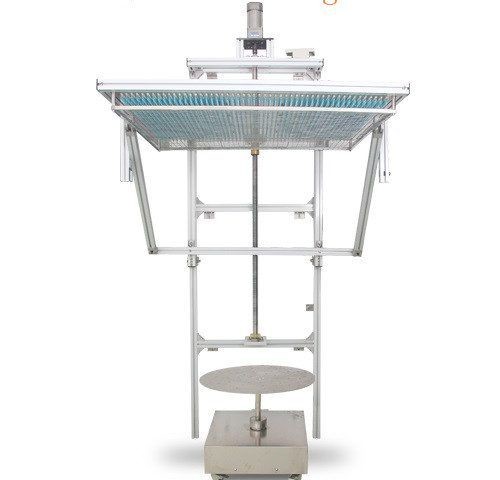

800mm X 800mm Dripping Box Device , Automatic Waterproof Test Equipment

Basic Information
Brand Name: KINGPO
Minimum Order Quantity: 1
Detail Information
Dripping Area: 800mm X 800mm Dimension: L1050×D1150×H2600 Mm
Turntable Diameter: 500 Mm Drip Box Travel: 1000-1800mm
Turntable Max Load: 50kg Power: 250V Or 110V,1KW
High Light:

800mm Sand And Dust Test Chamber

,

Dripping Box Device

,

Automatic Dripping Box Device


Product Description

1.The drip box sizes can make different size according to request. 2.The size of the drip box is different depending on the size of the test product. 3.the size can be customized by the customers’ need.
No. Item Parameter
1 Model kp-IPX12A-800 kp-IPX12A-1000
2 Drip Box Size 800mm x 800mm(or other size) 1000 x 1000mm(or other size)
3 Dimensions L1050×D1150×H2600 mm L1250 x D1350 x H2600mm
4 Turntable Diameter ¢500 mm ¢600 mm
5 Nozzle ¢0.4mm ¢0.4mm
6 Nozzle hole distance 20 x 20 mm 20 x 20 mm
7 Drip Capacity 1-5mm/Min(±0.5mm/min) 1-5mm/Min(±0.5mm/min)
8 Adjustment method Automatic or Manual Automatic or Manual
9 Drip Box Travel 1000mm-1800mm can be adjustable 1000mm-1800mm can be adjustable
10 Turntable Max Loading Weight 50 kg 65 kg
11 Rotation Speed 1 r/min 1 r/min
12 Angle 0° or 15° 0° or 15°
13 Turntable Height 300mm 300mm
14 Test time 0-999 min 0-999 min
15 Protection Leakage, water shortage, short circuit Leakage, water shortage, short circuit
17 Power 250V or 110V,1KW 250V or 110V,1KW



IPX1-2 Drop Box tester

The drip box test is one of several methods used to test the water protection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.

This test is used to meet the requirements of IPX1 and IPX2 in IEC60529. The drip box test subjects an enclosure to vertically falling drop lets much as a product might see during rain. The test has two parts. The first has the specimen sit in the orientation of its intended use.

The second has the specimen tilted 15° from vertical in four directions to simulate a blowing rain. This second test is also done with a higher flow rate of drips. This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2
