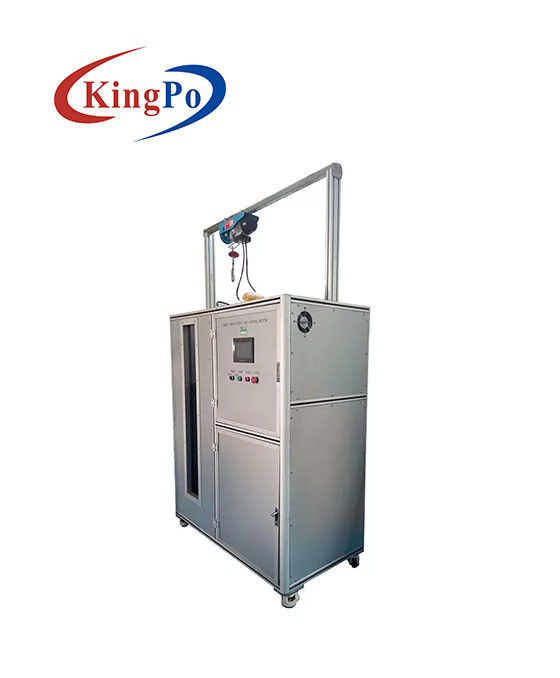

IEC60529 Ingress Protection Test Equipment IPX1 To IPX6 Control System
IEC60529 IPX1~IPX6 Control System
Product information:
The smart water supply and control system is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1~IPX6 and related requirement of IEC 60598. It is used for waterproof test of the electric appliance, such as the luminaires.
Technical parameters:
|
1. The smart water supply and control system is applicable to: |
|
(a) Water supply for IPX1~IPX6 waterproof test |
|
(b) Automatic control for the whole IPX1~IPX6 waterproof equipment |
|
2. Water supply method: constant temperature water supply, constant flow water supply, constant pressure water supply |
|
3. Water supply control process: After user preset the water temperature value, water flow value and water pressure value on the touch screen, electronic meters or digital pressure gauge real-time monitor the current values, read the values into PLC through the data conversion, then automatically adjust the rotational speed of pump through the frequency converter. |
|
4. There are large flow and small flow two ways water supply. |
|
5. Large flow water supply: |
|
(a) It is applicable to IPX5~IPX6 strong water spray test |
|
(b) Flow range: 10~100L/min |
|
(c) Flow accuracy: ±0.5L/min |
|
(d) Flowmeter: LWGY-15 type turbine flowmeter |
|
(e) Water pump: CHL8-60L6WBC type stainless steel centrifugal pump |
|
6. Small flow water supply: |
|
(a) It is applicable to IPX1~IPX4 waterproof test |
|
(b) Flow range: 1~10L/min |
|
(c) Flow accuracy: ±0.5L/min |
|
(d) Flowmeter: LWGY-4 type turbine flowmeter |
|
(e) Water pump: CHL2-30L6WBC type stainless steel centrifugal pump |
|

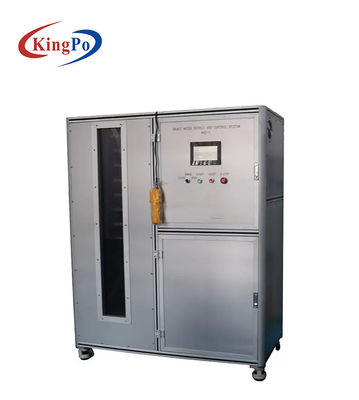

7. Water storage tank: |
|
(a) It is applicable to water storage of IPX5~IPX6 strong water spray test |
|
(b) Volume: 550L |
|
(c) Dimension: L600mmXW660mmXH1400mm |
|
(d) Observation window: toughened glass window |
|
(e) Observation window dimension: W200mmXH1250mm |
|
(f) Depth gauge: stainless steel |
|
(g) Depth gauge height: 1300mm, accuracy1mm |
|
(h) Liquid level control: float switch + overflow pipe |
|
8. Control Cabinet: |
|
(a) Flow detection: flow signal feedback through electronic flowmeter |
|
(b) Flow setting: set on touch screen |
|
(c) Temperature detection: PID |
|
(d) Controller: PLC |
|
(e) Friendly interface: MT6070IH, 7 inch, color touch screen |
|
(f) Control Function: constant temperature water supply, constant flow water supply, constant pressure water supply, and test time control. |
|
(g) Protection function: leakage protection, overload protection, short circuit protection |
|
9. Filter: stainless steel shell, fine filter core |
|
10. Body material: industrial aluminum alloy |
