| Place of Origin: | China |
|---|---|
| Brand Name: | KINGPO |
| Certification: | calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Working Chamber Size: | L1500*W800*H800 | Outer Size: | L1850*W1350*H1800 |
|---|---|---|---|
| Ultimate Vacuum: | 2Pa | Air Pressure Meter: | 0~-1.0Mpa |
| Sample Rack Height: | 0~750MM | Times Accuracy: | ±1min |
| High Light: | IPX5 Sand And Dust Test Chamber,IPX6 Sand And Dust Test Chamber,IPX5 Dust Proof Chamber |
||
IPX5 IPX6 Sand And Dust Test Chamber With Stainless Steel Enclosure
IEC60529-2001 IPX5 IPX6 Sand And Dust Test Chamber
IEC60529-2001 Sand And Dust Test Chamber For IPX5 and IPX6 Test
product introduation
The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.
The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IPX5 and IPX6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
The chamber can provide a non-laminar flow of dust-loaded vertically circulating air, can be timed controlled; also be equipped with a vacuum pump which can vacuum the test sample, the exhaust volume and pressure can be adjusted; in addition, the inside chamber is configured with a airflow temperature control device, to ensure that the test is under standard environmental conditions.
The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it is also having large observation window and manual wiper device. The security protection is good.
Parameters:
|
Model |
HH0810 |
|
|
Working size(mm) |
L1500*W800*H800 |
|
|
Outer size (mm) |
L1850*W1350*H1800 |
|
|
Main technical parameters |
Temperature range |
Room temperature |
|
Test dust |
dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm. |
|
|
Test sand (or talc) dosage |
2kg/m³
|
|
|
Vacuum pump |
Ultimate vacuum:2Pa |
|
|
Air pressure meter |
0~-1.0Mpa |
|
|
Sample rack height adjustment range |
0~750MM
|
|
|
Timing range
|
0~99 hours 59 min |
|
|
Timing accuracy
|
±1min |
|
|
Load cycle control
|
0~99 hours 59 min |
|
|
Ash blowing cycle control
|
1s~9999 min |
|
|
Sand and dust concentration |
2～4kg/m3 |
|
|
Air flow speed |
≤2m/s |
|
|
Device Name |
Dust and Sand Test Chamber |
||
|
Main configuration |
Cabinet |
Enclosure material |
Stainless steel |
|
Inner material |
SUS304B Stainless steel |
||
|
Lead hole |
It is for test sample’s power cord to be connected to the external power supply |
||
|
Observation window |
large observation window in the middle of the door |
||
|
Electrical control system |
Controller |
PLC Control: A. blowing dust time (stop, blowing) can be adjusted B. Cycle: arbitrary adjustable C. Preset test time: 0.1H-9999.9H arbitrary adjustable D. Power: On-off- On E. There are accumulating function and power-off protection function
|
|
|
Vacuum system |
Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe |
||
|
Security Protection Device |
Power overload, short-circuit protection |
||
|
Ground Protection |
|||
|
Voltage Protection |
|||
|
Motor phase loss protection |
|||
|
Alarm beep prompt |
|||

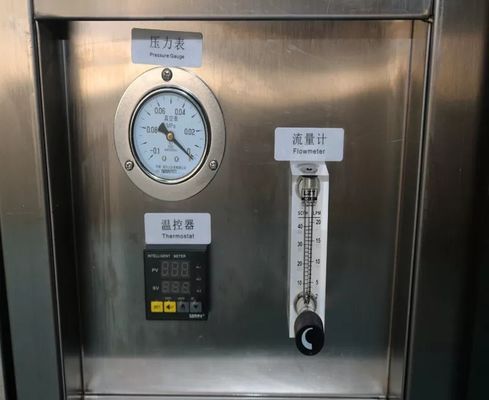

Picture for reference:
