| Place of Origin: | China |
|---|---|
| Brand Name: | KINGPO |
| Certification: | calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3 set per month |
| Model: | IPX7A | Outer Size: | 1080x1080x1300mm |
|---|---|---|---|
| Water Tank Inner Size: | 1000x1000x1200mm | Max Test Depth: | 1.2m |
| Chamber Material: | 304 Stainless Steel | Wall Thickness: | 1.5mm |
| High Light: | IEC60884 1 Immersion Testing Equipment,IPX7 Immersion Testing Equipment,IPX7 Water Immersion Test chamber |
||

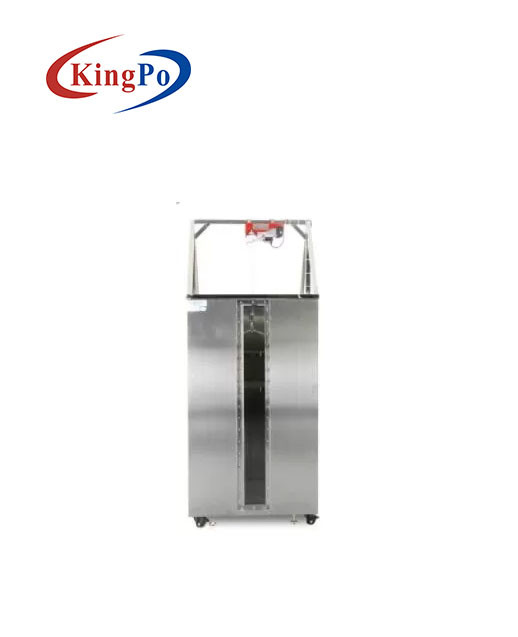

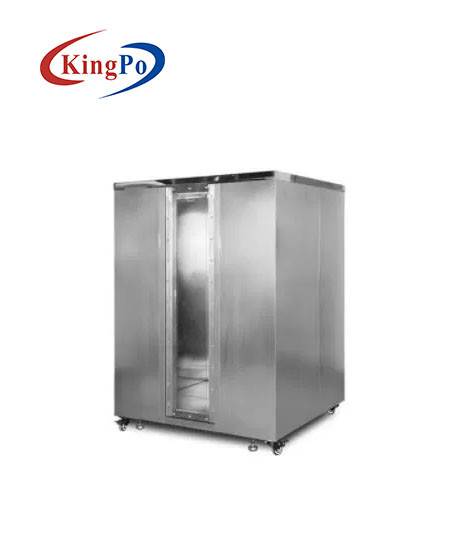

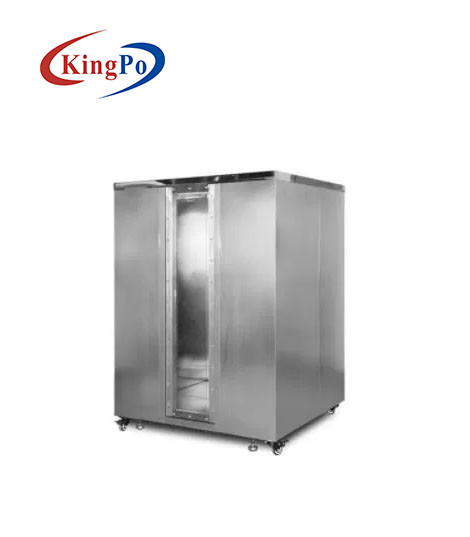

IEC60884 1 Immersion Testing Equipment IPX7 Waterproof Pereformance
IEC60884-1 Immersion Testing Equipment
IP Code of the IPX7 Immersion Test Chamber IEC60884-1 Test The Product Waterproof Pereformance
Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.
Application
It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment (water depth 1 meters). Through the test, check whether the product waterproof level meet the requirements, so that the product design, R&D and factory inspection use.
Features:
1. The middle is made of 12mm thick tempered glass, which makes the test situation clearer and more transparent, which is convenient for observation and test.
2. The outer chamber is made of 304 stainless steel, and the middle of the two layers is made of 40 square ribs, which is rust-resistant and strong.
3. The test chamber allows a maximum water depth of 1.2 m, and the water level gauge is designed according to the height of the water tank, and the water level value is clear.
Parameters:
|
Model |
IPX7 |
|
Outer size |
1080x1080x1300mm |
|
Water tank inner size |
1000x1000x1200mm ( can be customized) |
|
Maximum test depth |
1.2m |
|
Material of chamber |
304 stainless steel, thickness 1.5mm |
|
Water level display |
Stainless steel ruler (accuracy 1mm), horizontal vision 15° |
|
Water level adjustment method |
Inlet / outlet valve, manually regulated |
