IEC 60529 Probe A with force intended to verify protection of persons against access to hazardous parts for an IP1 Code

Basic Information
Place of Origin: China
Brand Name: KINGPO
Certification: calibration certificate
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety wooden box
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detail Information
Force: 0-50N Standard: IEC 60529 Figure 1
Warranty: 1 Year IP Level: IP1 Code

Product Description

Product Details

This probe is intended to verify protection of persons against access to hazardous parts for an IP1 Code. Also used to verify protection from access with the back of the hand for an IP suffix A code.

Standard:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application:This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

Test sample:Easily accessible enclosure live parts or mechanical parts. Ingress Protection Test Equipment

Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

Parameters:

Model HT-I01 HT-I01T
Name Test probe A Test probe A with force
Rigid test ball diameter (metal) SФ50+0.05 SФ50+0.05
Baffle diameter (nylon) Ф45±0.2 Ф45±0.2
Baffle thickness 4 4
Handle diameter Ф10 Ф10
Handle length (nylon) 100 100
Force ---- With force of 0-50N

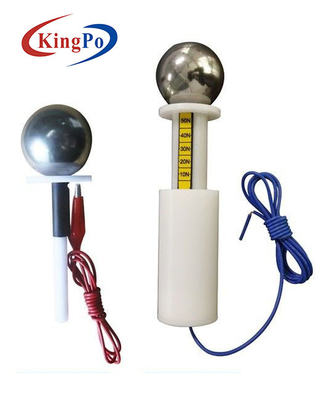

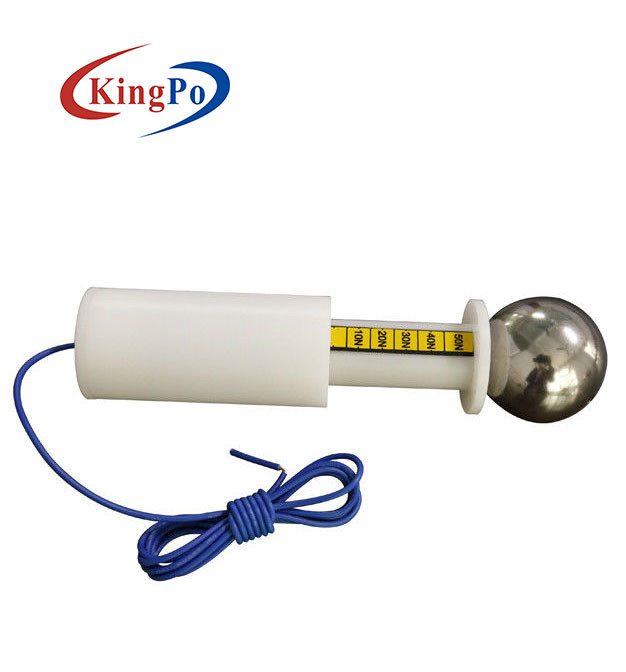

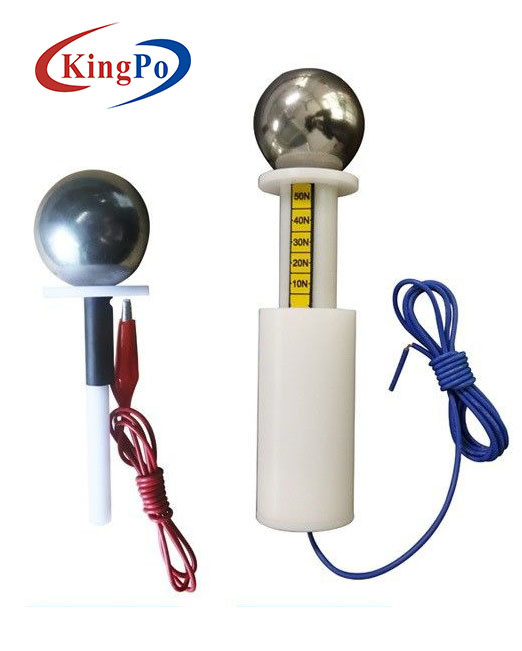

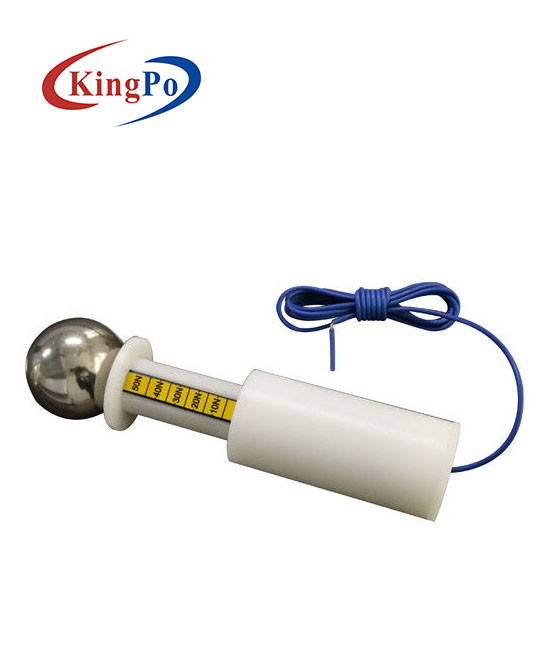

50N IEC 60529 IP1X Ingress Protection Test Equipment 0

50N IEC 60529 IP1X Ingress Protection Test Equipment 1
