Test Rod Probe C

Basic Information
Place of Origin: China
Brand Name: KINGPO
Certification: calibration certificate
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety wooden box
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Detail Information
Standard: IEC60529 APPLICATION: Degrees Of Protection Provided By Enclosures
PROBE DIAMETER: 2.5 SPHERE DIAMETER: Ф35±0.2
PROBE LENGTH: 100±0.2 HANDLE DIAMETER: 2

Product Description

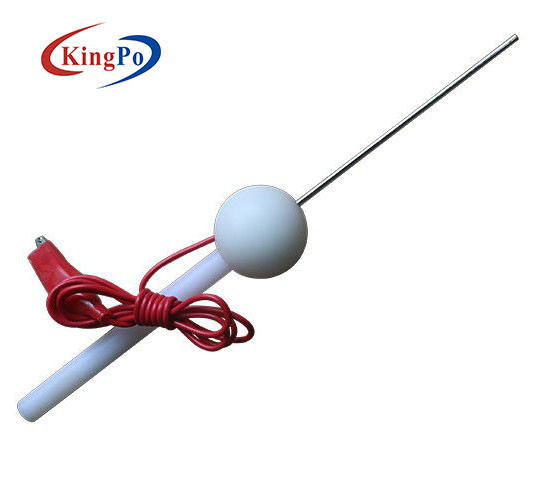

IEC60529 IP3X Ingress Protection Test Equipment Test Rod Probe C diameter2.5mm



Standard:Confirm to IEC 60529 IP3X; EN 60529 IP3X; IEC 61032-1 Figure 3; IEC 60065 and so on.

Standard description:

13.2 Test conditions for first characteristic numerals 1 , 2, 3, 4

The object probe is pushed against any openings of the enclosure with the force specified in table 7.

IEC60529 IP3X Ingress Protection Test Equipment Test Rod Probe C 2.5mm 0

13.3 Acceptance conditions for first characteristic numerals 1 , 2, 3, 4

The protection is satisfactory if the full diameter of the probe specified in table 7 does not pass through any opening.

NOTE For first characteristic numerals 3 and 4 the probes specified in table 7 are intended to simulate foreign objects which may be spherical. Where an enclosure has an indirect or tortuous entry path and there is any doubt about ingress of a spherical object capable of motion, it may be necessary to examine drawings or to provide special access for the object probe to be applied with the specified force to the opening(s) where ingress has to be checked.

Application:This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a tool.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .



Parameters:

Model HT-I03 HT-I03T
Name Test rod probe C Test rod probe C with force
Probe diameter Ф2.5+0.05 0 Ф2.5+0.05 0
Sphere diameter SФ35±0.2 SФ35±0.2
Handle diameter Ф10 Ф10
Probe length 100±0.2 100±0.2
Handle length 100 ----
Force ---- With force of 3N
Applied standard IEC61032.1 IEC60529
IEC60529 IP3X Ingress Protection Test Equipment Test Rod Probe C 2.5mm 1
IEC60529 IP3X Ingress Protection Test Equipment Test Rod Probe C 2.5mm 2
