Application: | IPX1X2 Test | Power Supply: | Single-phase AC220V 50Hz |
---|---|---|---|
Needle Hole: | Φ0.4mm | Distance Between Holes: | 20mm |
Rotary Table: | Diameter: Φ600mm | Rotating Speed: | 1r/min |
Description:
This is to testing of IPX1 and IPX2 protection aginst water of electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products.
Confirm to standards:
IEC 60529 IPX1, IPX2;
EN 60529 IPX1, IPX2;
IEC 60598-1;
IEC 60335-1 and so on.
Test sample: The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).
Feature:

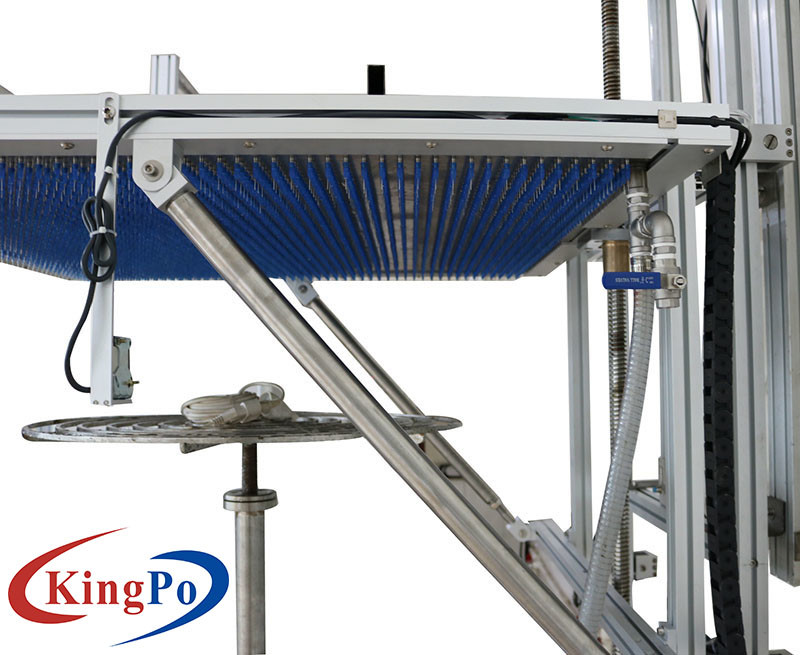

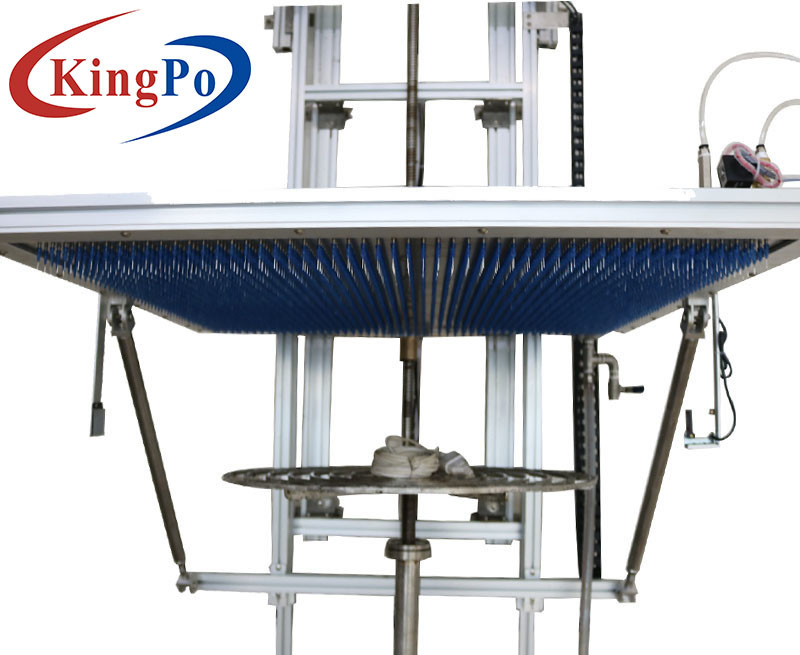

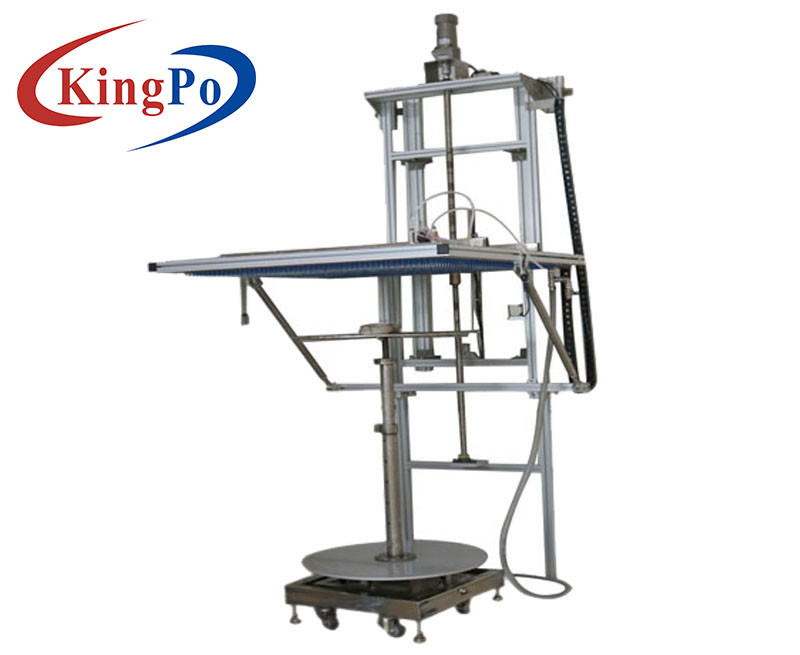

The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test; It is also equipped with 15°bevel for supporting sample for the IPX2 test. This device is with the clean water filtration unit which can prevent pinhole from jamming, it is controlled by PLC electrical control system, and touch screen operation.
Technical parameters:
Power supply | Single-phase AC220V 50Hz or customize |
Water supply | Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
Control and operation | PLC intelligent control, 7 inch color touch screen operation |
Testing time | 0-999.9min |
Water tank size | Outline dimension: WDH=1100×800×350mm, fully enclosed water tank, SUS304 material |
Drip test area | 1000×600mm, customizable |
Drip height | 200mm, adjustable |
Dripping rate (Water flow) | 1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology |
Needle hole | Φ0.4mm |
Distance between holes | 20mm |
Rotary table | Diameter: Φ600mm; Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing≤150kg electrical equipment |
Supporting sample | 15° bevel support |
Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
Installation method | Wall mounted or floor type |
Site requirements | Dedicated IP waterproof test room, The ground should be flat with illumination |
Area covered | WDH =1500mm×1500mm×2650mm, the size can be set according to customer’s requirement |
