| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Probe Diameter: | 1mm | Shpere Diameter: | 35mm |
|---|---|---|---|
| Handle Diameter: | 10mm | Handle Length: | 100mm |
| Brand: | KingPo | Usage: | Electric Safety Test |
| High Light: | UL Test Finger Probe,PA140A Test Finger Probe,PA140A UL Test Finger |
||

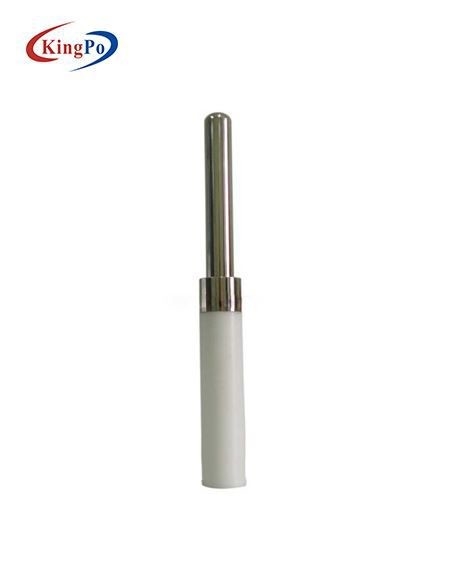

PA140A UL Test Finger Probe For Enclosure Anti Electric Shock
PA140A UL Probe
Product Details
IEC 60529 IP4X 1.0mm Test Wire
IEC 60529 IP4X 1.0mm Test Wire is intended to verify the protection of persons against access to hazardous parts. It’s also used to verify the protection against access with a wire. Wire diameter: 1.0mm Wire length: 100mm Handle length: 100mm Handle diameter: 10mm Sphere dameter: 35mm
Description:
This wire probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.
Confirm to standards:
IEC 60529 IP4X;
EN 60529 IP4X;
IEC 61032-1 Figure 4;
IEC 60065 and so on.
Test sample: Easily accessible enclosure live parts or mechanical parts.
Feature: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with “F” is with force.
Technical parameters:
|
Model |
JY-F4D |
JY-F4DF |
|
Name |
Test rod probe D |
Test rod probe D with force |
|
Probe diameter |
1.0mm |
1.0mm |
|
Shpere diameter |
35mm |
35mm |
|
Handle diameter |
10mm |
10mm |
|
Handle length |
100mm |
– |
|
Test force |
– |
With force of 1N |
|
Applied standard |
IEC 61032-1 |
IEC 60529 |
