| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Metal Pin Tip Diameter: | Ф3(0,-0.05) | Metal Pin Tail Diameter: | Ф4(0,-0.05) |
|---|---|---|---|
| Metal Pin Length: | 15(0, -0.1) | Baffle Diameter: | Ф25±0.2 |
| Baffle Thickness: | 4 | Handle Diameter: | 10 |
Product information:

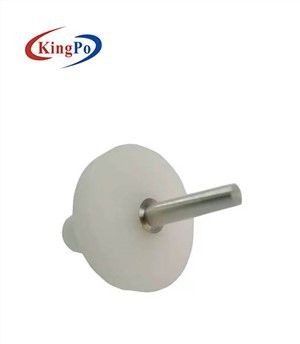

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.
Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Standard:IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065.
Application:This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
| Model | HT-I09 |
| Name | Short test pin probe |
| Metal pin tip diameter | Ф3(0,-0.05) |
| Metal pin tail diameter | Ф4(0,-0.05) |
| Metal pin length | 15(0, -0.1) |
| Baffle diameter | Ф25±0.2 |
| Baffle thickness | 4 |
| Handle diameter | Ф10 |
| Handle length | 20 |
IEC61032 test standard: Protection of persons and equipment by enclosures-Probes for verification
Protection of persons and equipment by enclosures-Probes for verification
