ISO6941 50W Flammability Test Equipment For Toy Subsidiary Materials

Basic Information
Brand Name: KINGPO
Minimum Order Quantity: 1
Detail Information
Power: 50W Timing Device: 9999×0.1S
Combustion Angle: 0°,20°,45° Height Of The Flame: 0~200mm Adjustable
Blast Burner Standard: ISO6941 Gas Flow: 0~0.3ml/min
High Light:

50W Flammability Test Equipment

,

ISO6941 Flammability Test Equipment

,

ISO6941 Fire Testing Equipment


Product Description

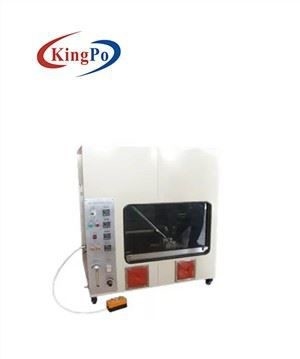

ISO6941 50W Flammability Test Equipment For Toy Subsidiary Materials



Toy Flammability Safety Test Apparatus



Product information:

This device is designed and manufactured according to ISO8124 toy safety combustion performance. Adopting the burner that conforms to ISO6941, this testing device is suitable for combustion performance testing of all kinds of toy products and their subsidiary materials. Some examples are list as follows:

1. The clothing Children wear, especially shawls, flowing clothes and the similar type of product;

2. The toys that children can enter in (such as toys tents and dollhouse);

3. The toys that children can embrace with (Soft stuffed toy);

4. The objects that Children wear such as mask and wig;

5. Beard, tentacles, wig, mask and other headware toys which contain plush or other subsidiary materials



This product adopts the integral intake ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. It is with black inwall and multi-functional flame measure gauge. The illuminance is less than 20lx. The box is made of stainless steel. It is equipped with large observation window and imported digital indicator of high precision. And it gathers a number of advantages of similar products home and abroad.



Technical parameters:

Power

50W(HB/V)

Timing device

9999×0.1S

Combustion angle

0°,20°,45°

Height of the flame

0~200mm adjustable

Blast burner standard

ISO6941

Temperature measurement

MAX 1100°C

Gas flow

0~0.3ml/min

Flow precision

1%

Gas category

Butane or propane

Box volume

Greater than 1cube

Working power supply

220V/AC 50Hz 0.5A
