560mmx170mm Flammability Test Equipment Adjustable Burning Height

Basic Information
Brand Name: KINGPO
Minimum Order Quantity: 1
Detail Information
Burning Flame Height: 0~60mm Adjustable Specimen: 560mmx170mm
Standard: ISO 6941 Ignition Time: 5 Seconds
Combustion Gas: Butane Gas Power Supply: AC 220V 50Hz
High Light:

170mm Flammability Test Equipment

,

560mm Flammability Test Equipment

,

ISO 6941 Burning Flame Tester


Product Description

560mmx170mm Flammability Test Equipment Adjustable Burning Height



ISO 6941 Flammability Testing Equipment 6941 Flammability Tester Burning Flame Height 0~60mm adjustable



Standard: ISO 6941



Application

This tester is suitable for clothing with single or multiple components (coatings, quilts, multilayers, laminated products, and the like), curtain plackets and large tents including awnings and door covers for vertical flame propagation performance of textiles. test. This tester can only be used to assess the performance of a material or combination of materials after exposure to flame under laboratory control conditions. The test results do not apply to situations where the oxygen supply is insufficient or if the heat is applied for too long in a fire.



Technical Parameters:

Specimen: 560mmx170mm, three each in warp and weft

Burning flame height: 0~60mm adjustable

Fire mouth angle: angle with horizontal line: 0°/22.5°/90° adjustable

Ignition time: 5 seconds

Combustion gas: butane gas

Power supply: 1 ∮ AC 220V 50Hz

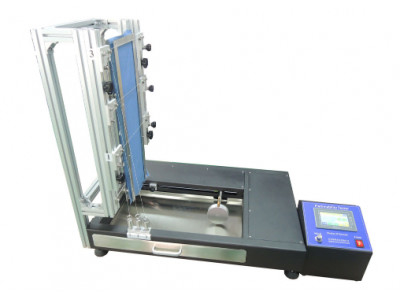

Picture for reference



560mmx170mm Flammability Test Equipment Adjustable Burning Height 0
