220V 50Hz Ф0.9mm Needle Flame Test Apparatus Flowmeter Adjustment

Basic Information
Brand Name: KINGPO
Minimum Order Quantity: 1
Detail Information
Name: Needle Flame Test Apparatus Parameter/ Model: NF-1
Working Voltage: 220V/50Hz Timing Device: 9999X0.1S
Range Of Temperature Test: 0~1000℃ Volume Size: Flowmeter Adjustment
High Light:

Ф0.9mm Needle Flame Test Apparatus

,

Ф0.9mm Flame Test Laboratory

,

220V 50Hz Needle Flame Test Apparatus


Product Description

220V 50Hz Ф0.9mm Needle Flame Test Apparatus Flowmeter Adjustment



Laboratory Testing Equipment IEC60695-11-5 Needle Flame Test Chamber



Product information:

The Needle Flame Tester consists of a Ф0.9mm needle-shaped burner that tilts with the angel of 45°and provide it with butane gas. The fire hazard of the equipment when there is flammule inside the equipment that caused due to the fault condition is assessed by whether the specimen can be ignited or the combustion time and length. This tester conforms to the standard requirement of IEC60695-11-5,IEC60335-1.

The Needle Flame Tester is suitable for the research, production and quality testing department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, electrical connector, electrical and electronical equipment and other components. It is also suitable for insulating material, engineering plastics or other solid combustion material industry.



Model specification and technical parameters (Optional for touch screen NF-2):



Parameter/ model NF-1
Working voltage 220V/50Hz
Timing device 9999X0.1S
Combustor Inner boreφ0.5mm ± 0.1mm ,OD ≤φ0.9mm ,L ≥ 35mm,stainless steel
Combustion angle tilt 45°( testing ) or vertical ( when adjust the height of the flame)
Height of the flame 12±1mm adjustable(with flame height gauge)
Gas category 95% butagas ( can use the bottled lighter gas)
Range of temperature test 0~1000℃
Flame warming requirement From 100°to 700°,time for standard values within 23.5S±1S
Temperature thermocouple φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work shop 0.5 cube,staunless steel case,black yogon background,(customizable0.75 cube,1cube)
Testing process Test procedure automatic control,independent air draft
Volume size adjustment Flowmeter adjustment
Conforms to standard GB4706.1-2005,GB5169.5-2008,IEC60695-11-5,IEC60335-1


Includes:
A white Pine Test Board and five Sheets of Tissue Paper
A flame height gauge


Consumables:
White Pine Test Board and Tissue Paper
Thermocouple Type K and Copper Block

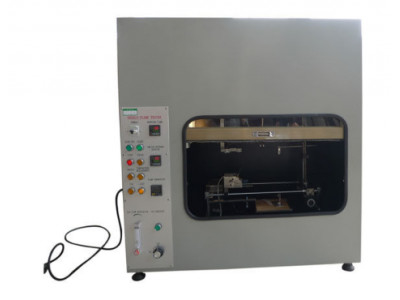

220V 50Hz Ф0.9mm Needle Flame Test Apparatus Flowmeter Adjustment 0

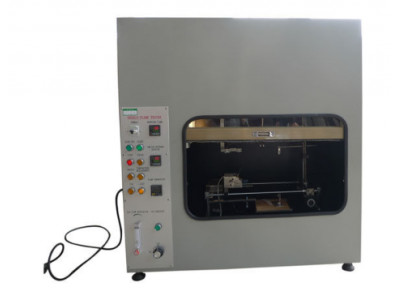

220V 50Hz Ф0.9mm Needle Flame Test Apparatus Flowmeter Adjustment 1
