| Brand Name: | KINGPO |
|---|---|
| Minimum Order Quantity: | 1 |
| Timing Device: | 9999X0.1s | Combustion Angle: | 0°,20° |
|---|---|---|---|
| Flame Standard: | ANSI/ASTM D 5207 & UL 1581 | Blast Burner Standard: | ANSI/ASTM D 5025 |
| Temperature Measurement: | MAX 1050°C | Gas Flow: | Ml/min ±0.1% |
| High Light: | UL 1581 Flammability Test Equipment,ANSI Flammability Test Equipment,UL 1581 Flammability Test Apparatus |
||

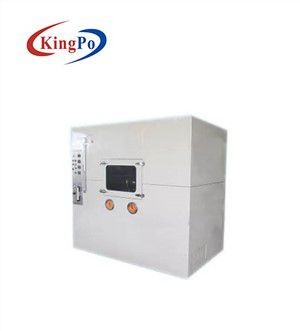

Electric Wire Flammability Test Equipment With UL 1581 Standards
Electric Wire Horizontal-vertical Flame Apparatus
Product information:
The device is designed and manufactured in accordance with UL1581 standards and related requirements. It is applicable for the finished wire and cable, or soft-line to do 1060 vertical combustion and FT1 test, 1061 cable combustion test, 1080VW-1(vertical specimen) combustion test, 1090 electric wire horizontal specimen combustion test and 1100 horizontal specimen/ FT2 combustion specimen. The testing purpose is to evaluate the spreading flame capacity of electric wire or soft-line when they are on fire.
Technical parameters:
|
Timing device |
9999X0.1s |
|
Combustion angle |
0°,20° |
|
Flame standard |
ANSI/ASTM D 5207 & UL 1581 |
|
Blast burner standard |
ANSI/ASTM D 5025 |
|
Temperature measurement |
MAX 1050°C |
|
Gas flow |
ml/min ±0.1% |
|
Thermocouple |
NiCrφ0.5 armour ±0.1% |
|
Flame test |
225W/50mm(16.5mm)/84±2S 405 ±10mL/min& 45±5 mm water 500W/125mm(40mm)/54±2S A:965 ±30mL/min&125±25 mm water B:385 ±15mL/min&552±100 mm water C:300 ±10mL/ min&600±125 mm water |
|
Temperature controller |
16A/D ±0.05% |
|
Copper billet weight |
10 ± 0 .05 g (before drill) |
|
Gas category |
Methane purity>98%(equipped by the user) |
|
Dimension |
Combustion box:2*2*1.207(M),internal capacity is larger than 4 cube |
It is equipped with:▲methane reducing valve:1/2 inches pipe thread,14 pitch of thread,sinistrogyration direction；
▲ flame height gauge
▲ Degreasing cotton for testing.
