| Place of Origin: | Mainland China |
|---|---|
| Brand Name: | KINGPO |
| Certification: | calibration certificates |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box. |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Standard: | IEC60332 | Application: | For Vertical Burning Test Of Single Cable Or Optical Cable Products |
|---|---|---|---|
| Working Voltage: | 220V/50Hz | Propane: | 650±30mL/min |
| Air: | 10±0.5L/min | Burning Angle: | Tilt 45°±2° |
| High Light: | Vertical Flammability Test Equipment,IEC60332 Flammability Test Equipment,IEC 60332 Vertical Flammability Chamber |
||

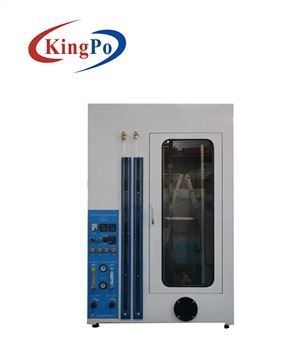

IEC60332 Vertical Flammability Test Equipment For Optical Single Cable
IEC60332 Single Cable Vertical Burning Test Chamber
Standard: IEC60332-1-1:2004,IEC60332-1-2:2004,IEC60332-1-3:2004,IEC 60332-2-2 and etc.
Application:Suitable for vertical burning test of single cable or optical cable products, determine the combustion characteristics of insulating materials.
Test sample:Single cable or optical cable products.
Feature:Using integral intake automatic ignition system, combustion time delay only 0.1s to ensure that the full combustion of the gas.
Parameters:
|
Working voltage |
220V/50Hz |
|
Control operation mode |
Electrical control, button operation |
|

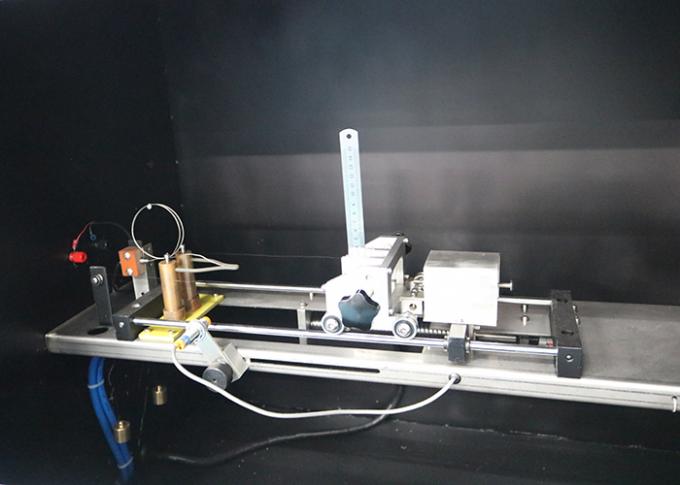

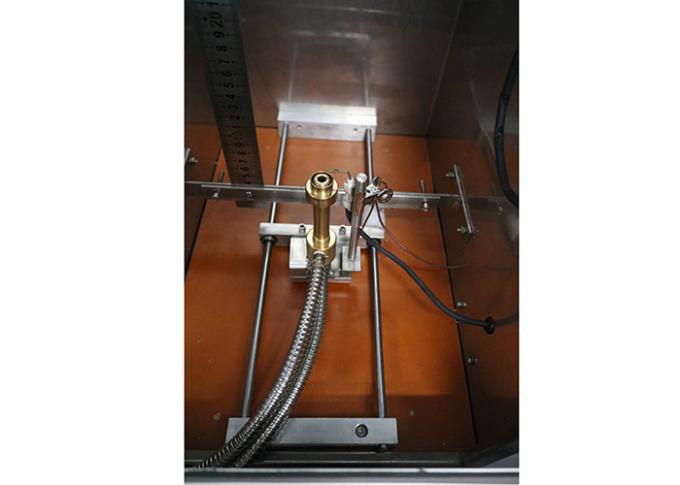

Blast burner standard |
IEC60695-11-2 Annex A,Burner opening:Φ7±0.05mm,made of brass |
|
Gas flow and gas category |
Mixture gas:650±30mL/min propane；10±0.5L/min air,Dual flow meter adjustment |
|
Burning time |
9999X0.1S |
|
Burning angle |
Tilt 45°±2°,Adjustable |
|
Test flame calibration |
Temperature measuring copper head:1000W:Ф9mm±0.01mm,weight before drilling:10 ± 0 .05g |
|
Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple,temperature resistance 1100° |
|
|
Distance between the bunsen burner port to temperature measuring copper block:95 mm |
|
|
Flame height:Inner flame:55±5mm,Outer flame:180±10mm |
|
|
Temperature rise time from 100±5°C to 700°±3°C 45±5s |
|
|
Metallic screen size |
H1200mm*W300mm*D450mm |
|
Combustion chamber |
1 m³ |
|
Gas |
>95% propane or coal gas |
|
Test sample |
Length:600±25㎜,distance from the bottom:50mm |
|
Fixed horizontal support of the sample |
2, distance:550mm |
