ARC Heavy Current Ignition Tester For Household Appliances Materials

Basic Information
Place of Origin: Mainland China
Brand Name: KINGPO
Certification: calibration certificates
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box.
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detail Information
Standard: BS 7002 Application: For Arcing Resistance Test Of Electric And Electronic Products
Working Voltage: 110V/60Hz Arc Strike Speed: 40 Times/min
High Light:

ARC Heavy Current Ignition Tester

,

BS 7002 Heavy Current Ignition Tester

,

ARC Ignition Spark Tester


Product Description

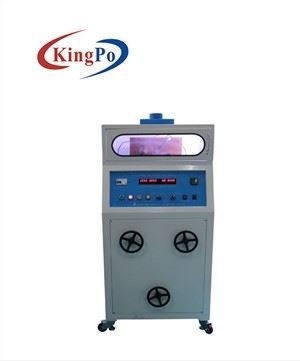

ARC Heavy Current Ignition Tester For Household Appliances Materials



Heavy Current ARC Ignition Test Apparatus



Standard:IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1.



Application: It is suitable for arcing resistance test of electric and electronic products, household appliances and its materials. The working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts. It is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.



Test sample:Information technology equipment, low voltage switch and control equipment parts.



Feature:Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.



Parameters:

Working voltage

110V/60Hz

Control operation mode

Electrical control, button operation

Arc strike current and power factor

When the power factor is 0.5, the current is 33A±0.5A

Arc strike speed

40 times/min

Electrode separation velocity

254±25㎜/S

Arc strike times

0-9999 can be preset

Electrode material

Static electrode—copper,dia.Ф3.5mm (Ф3.2)×152mm,top bevel angle 30°

Moving electrode—stainless steel,diaФ3.5mm(Ф3.2)×152mm, top cone angle 60°

Electrode included angle

Form 45° with level,electrode head radius of curvature 0.1mm

Test procedure

Automatic control, independent exhaust

Lighting

Equip with lighting in the test chamber, with control

Test chamber and dimension

LWH:800×700×1600mm,300kg



Attention

a) Do not start the testing or debugging if the current and voltage regulators are on the high gear positions, in order to avoid circuit breaker tripping which is caused by instantaneous large current.

b) The electrode is particularly susceptible to be damaged, after each testing, the electrode should be trimmed clearance.

c) The instrument is equipped with a door protection switch, the door must be completely closed.

d) The device will generate much heat, it should be placed in a ventilated place, the back of the device should keep a certain distance from other objects to ensure the fluidity of air, and please do regular checks for exhaust fan to ensure safety.

e) The power supply of the device requires ground protection

f) The polarity colors of the power cord: Brown is for (L) line, blue is for (N) line, black is for (E) line.
