High Voltage Tracking Index Tester With PLC Touch Screen Control

Basic Information
Brand Name: KINGPO
Minimum Order Quantity: 1
Detail Information
Control Method: PLC Touch Screen Control Test Wind Speed: 0.2m/s (new Standard)
Pressure Drop: 1.0A 0.1A (error); 100mA (correct) ±8% Dimensions: Width 600mm X Depth 500mm X Height 1000mm
High Light:

High Voltage Tracking Index Tester

,

IEC60587 Tracking Index Test Apparatus

,

D2303 Tracking Index Tester


Product Description

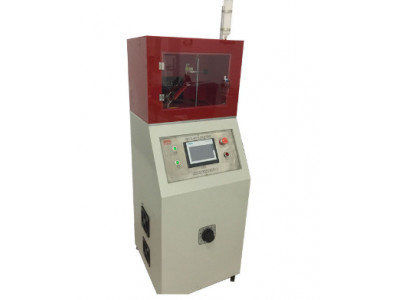

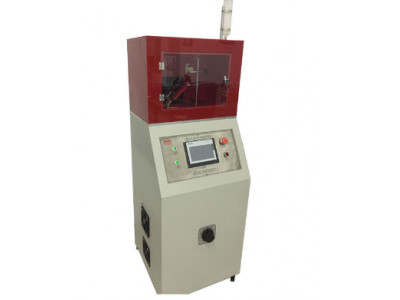

High Voltage Tracking Index Tester With PLC Touch Screen Control



IEC60587-1984 High Voltage Tracking Tester Plc Touch Screen Control Integrated Design



Standard: IEC60587-1984 and D2303.



Application:

Under the influence of moisture and impurities in electrical products, between the different polarity live parts or between the live parts and the grounding metal may cause leakage on the insulation. The generated arc may cause electrical short-circuit or electrical discharge due to discharge. Loss or even fire causes a fire. Leakage tracking test is a destructive test performed on insulating material to simulate the above conditions, and it is used to measure and evaluate the relative creepage resistance of insulator under the action of electric field and impurity water at the specified voltage.



Test sample

Solid electrical insulation materials and products for electronic products and household appliances, such as: relay sockets, changeover switch covers, contactors, etc.



Feature

The tester consists of an experimental part and a control part with an integrated design to facilitate on-site installation and commissioning. Test case shell and structural parts made of SUS304 stainless steel or brass; electrode head SUS304 stainless steel, high temperature corrosion resistance; drop count accurate, stable and reliable control system.



Parameters

Control method

PLC touch screen control

Electrode material

Using the upper and lower electrodes, an alternating voltage of 2.5 kV to 10 kV was applied.

When the short circuit leakage current is equal to or greater than 60mA in the test circuit, the time is maintained for 2 seconds.

Relay action, cut off the current, indicating that the sample failed

Dropping device

The time constant of the drip device is adjustable so that the drip volume and the drip time interval are precisely controlled

Test voltage current

500 ~ 10kV (adjustable) (digital display); 5 ~ 60mA (binning can be set), short-circuit current up to 100mA; (digital display);

Current control impedance

60, 50, 30, 15KΩ or set according to actual requirements, achieve the requirements of secondary test current 10, 22, 33 and 40mA by switching

Secondary current limiting resistor

15KΩ or set according to actual circuit requirements

Test electrode

2 pairs, respectively, are smooth burrless stainless steel electrodes 0.15mm thick, 12.7×25.4, angle of 160°;

And tungsten rod electrode Φ2.4 × 45mm, with the axis and the angle of 30 ° head;

The force of the electrode on the sample

50g±5g.

Number of droplets

1-9999 (digital display, can be preset)

Test wind speed

0.2m/s (new standard)

Pressure drop

1.0A 0.1A (error); 100mA (correct) ±8%

Tracking judgment

Criterion A: When the current through the sample in the high pressure loop exceeds 60 mA, it reaches the end point.

The overcurrent device shuts off the power at this time.

Criterion B: When the mark reaches the mark on the surface of the sample at 25 mm from the lower electrode, the end point is reached.

Dimensions

Width 600mm x depth 500mm x height 1000mm, exhaust hole diameter ø 100mm

Configuration

It is recommended to choose the electronic weighing device

Accessories

Depth gauge: The accuracy of the depth gauge is ±0.01mm, and the tip of the probe is a hemisphere with a radius of 0.25mm.
